Garage Floor Epoxy Kits: Which Ones Hold Up and Why

A garage floor epoxy kit is a boxed two-part coating system, resin plus hardener and usually an etch and color flakes, sized to coat a stated area of concrete in one weekend. Kits look alike on the shelf but differ by a factor of three in how much coating they actually leave on the floor. This page compares named kits on the numbers in their own data sheets. The step-by-step application is in a separate guide, and pro pricing in another.

Which garage floor epoxy kit should you buy?

Buy the kit whose film thickness, cure conditions and coverage fit your floor, then budget for prep. The table lists published specs and prices seen in October 2026.

ArmorPoxy’s price range comes from the topcoat and primer you choose. Legacy sells primer, Torginol flakes and a polyurea or urethane topcoat as add-ons, so its base price covers the epoxy alone.

Why do some epoxy kits hold up longer than others?

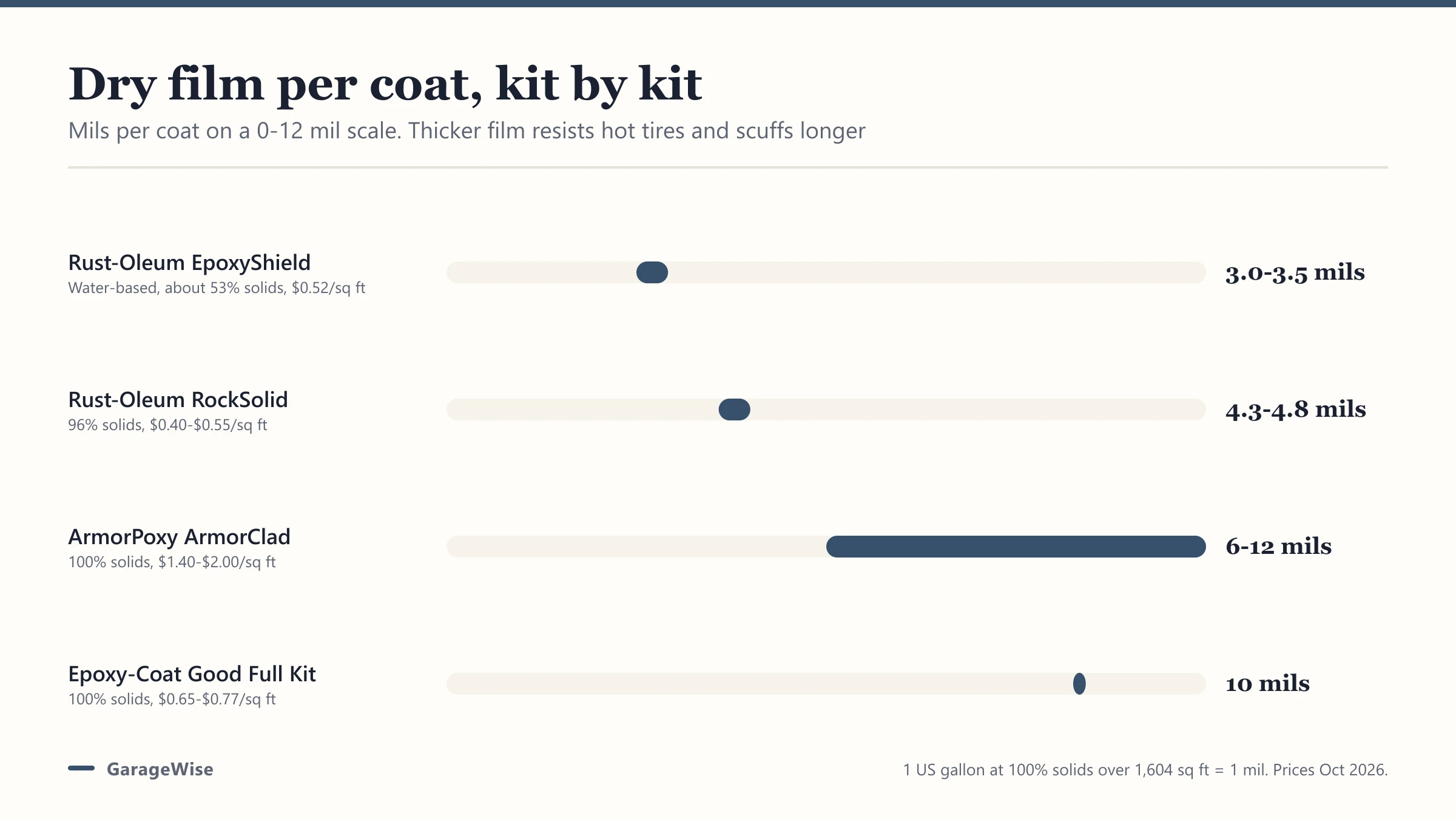

Kits hold up longer when they build a thicker film, go down on properly prepared concrete, and get a topcoat. Thickness is the part you can compare before buying, and it comes from three numbers: how much liquid is in the box, how much of it is solids, and how far you spread it.

One US gallon holds 231 cubic inches, which is enough to cover 1,604 sq ft at 1 mil (one thousandth of an inch). So the dry film a kit can build is 1,604 x gallons x solids fraction / square feet:

• EpoxyShield: the pouch holds 120 fl oz (0.94 gal) at about 53% solids over 250 sq ft, about 3.2 mils. Rust-Oleum’s data sheet says 3.0 to 3.5 mils.
• RockSolid: the 2.5-car kit holds 180 oz (1.41 gal) at 96% solids over the 450 to 500 sq ft retailers list for it, about 4.3 to 4.8 mils.
• Epoxy-Coat: 3 gallons at 100% solids over 500 sq ft, about 9.6 mils. The seller states 10 mils.

A thicker film resists hot tire pickup, scuffs and chemical spills longer. It does not fix bad prep: Garage Force, a coatings installer, names moisture vapor rising through the slab as the number one cause of coating failures.

Which kits are worth buying, and for whom?

Each kit below suits a different floor and buyer.

Best retail kit: Rust-Oleum RockSolid. 96% solids, one coat, drive-on in 24 to 36 hours, applied between 40 and 90 degrees F, and a 7-day recoat window without sanding, per Rust-Oleum’s data sheet. Pot life is 45 minutes to 1 hour, and the instructions say to mix one pouch at a time and keep it out of direct sunlight. Not for a previously coated floor that fails the tape test (more than 10% of the coating lifting).

Entry-level: Rust-Oleum EpoxyShield. The most widely stocked kit, water-based, low odor, with a pot life of 1 to 2 hours depending on temperature, which gives a beginner time. It needs 60 to 85 degrees F and 3 days before cars. Not for a heavy-use floor: at about 3 mils it is the thinnest film here.

Best 100% solids value: Epoxy-Coat Good Full Kit. Two gallons of resin and one of hardener, flakes, acid cleaning granules and a non-skid additive for 500 sq ft at 10 mils in a single coat. The seller claims up to 20 years in residential use and backs it with a 2-year limited warranty. Not for someone who wants a topcoat included.

Best complete system: ArmorPoxy ArmorClad. A 100% solids epoxy kit with etch, flakes, non-skid and tools, sold with a choice of standard, military-grade two-part or polyaspartic topcoat. Pot life is 15 to 20 minutes, application range 50 to 90 degrees F, and cars return after 72 to 96 hours. Not for a first-timer working alone in summer heat.

Best build-your-own: Legacy Industrial SD Epoxy Coat Kit. About $1.10 per sq ft for the base epoxy in sizes from 200 to 2,000 sq ft, with primer, flakes and a polyurea or urethane topcoat priced separately. Not for a buyer who wants every part in one box.

How many kits do you need, and what will they cost?

Divide your floor area by the kit’s rated coverage and round up; the totals below use the 576 sq ft of a typical 24 x 24 ft two-car garage.

Rated coverage assumes smooth, sound concrete. Rust-Oleum notes that rough, porous concrete reduces coverage, and Legacy warns that grinding, joints and rough surfaces cut it too, so round up rather than down. Garage sizes for 1- and 3-car garages are in our epoxy garage floor cost guide, which also covers grinder rental, crack repair and what a pro would charge.

What do the kits leave out?

Every kit leaves out at least some of the prep and tools that decide whether it lasts. Rust-Oleum’s RockSolid data sheet lists a 9 in. roller frame, extension pole, 3 in. brush and stiff broom or scrub brush as items to buy separately, plus degreaser, concrete patch and anti-skid additive as optional extras.

Three gaps matter most:

1. Mechanical prep. Kit etches open clean, bare concrete. ArmorPoxy says any existing coating must be mechanically removed, which means a rented diamond grinder.
2. Moisture control. Rust-Oleum calls for a 24-hour plastic-sheet test and its Moisture Stop primer if moisture shows.
3. Topcoat. Only some kits include one. A clear topcoat adds wear and stain resistance and can carry an anti-skid additive, since a coated floor gets slippery when wet.

The full process is in how to epoxy a garage floor.

Is one-part epoxy paint a cheaper substitute?

One-part epoxy floor paint is cheaper but is not a substitute for a kit. Behr’s self-priming one-part epoxy floor paint was about $48 a gallon in October 2026 and covers 300 to 500 sq ft per gallon, about 10 to 16 cents per sq ft per coat. With no activator, it dries rather than curing through a two-part reaction, and Behr calls for 7 days before car tires.

It suits a floor you want tidied and colored, or a basement or workshop with foot traffic only. For parking on, choose a two-part kit.

Who should not use an epoxy kit?

Skip an epoxy kit if the slab fails a moisture test, if it is cracked and still moving, if the garage door faces the sun and stays open (epoxy yellows under UV light, according to Bob Vila), or if the garage cannot stay within the kit’s temperature range through the cure. New concrete also needs time: Rust-Oleum asks for at least 28 days for EpoxyShield and 30 days for RockSolid.

For a sunny garage or a one-day turnaround, compare polyaspartic vs epoxy. For a damp or cracked slab, a floating floor is safer; all surfaces are compared in our garage floor coating options.

Where do these numbers come from?

We did not coat test floors; figures are attributed. EpoxyShield: Rust-Oleum technical data sheet ESH-39 (pouch kits, revised July 2021); price from Home Depot’s listing, October 2026. RockSolid: Rust-Oleum technical data sheets RSD-10 (revised August 2022) and RSD-01; 180 oz kit size, 450 to 500 sq ft kit coverage and prices from Walmart, Menards and Amazon listings, October 2026. Epoxy-Coat: performancediy.com product page, October 2026. ArmorClad: armorpoxy.com kit and 100% solids epoxy pages, October 2026. Legacy Industrial: legacyindustrial.co product page, October 2026. Behr: Home Depot listing, October 2026. Lifespan range and UV yellowing: Bob Vila’s epoxy cost guide (April 26, 2024). Failure causes: Garage Force, September 2026. Film calculations: ours, from 231 cubic inches per US gallon.
